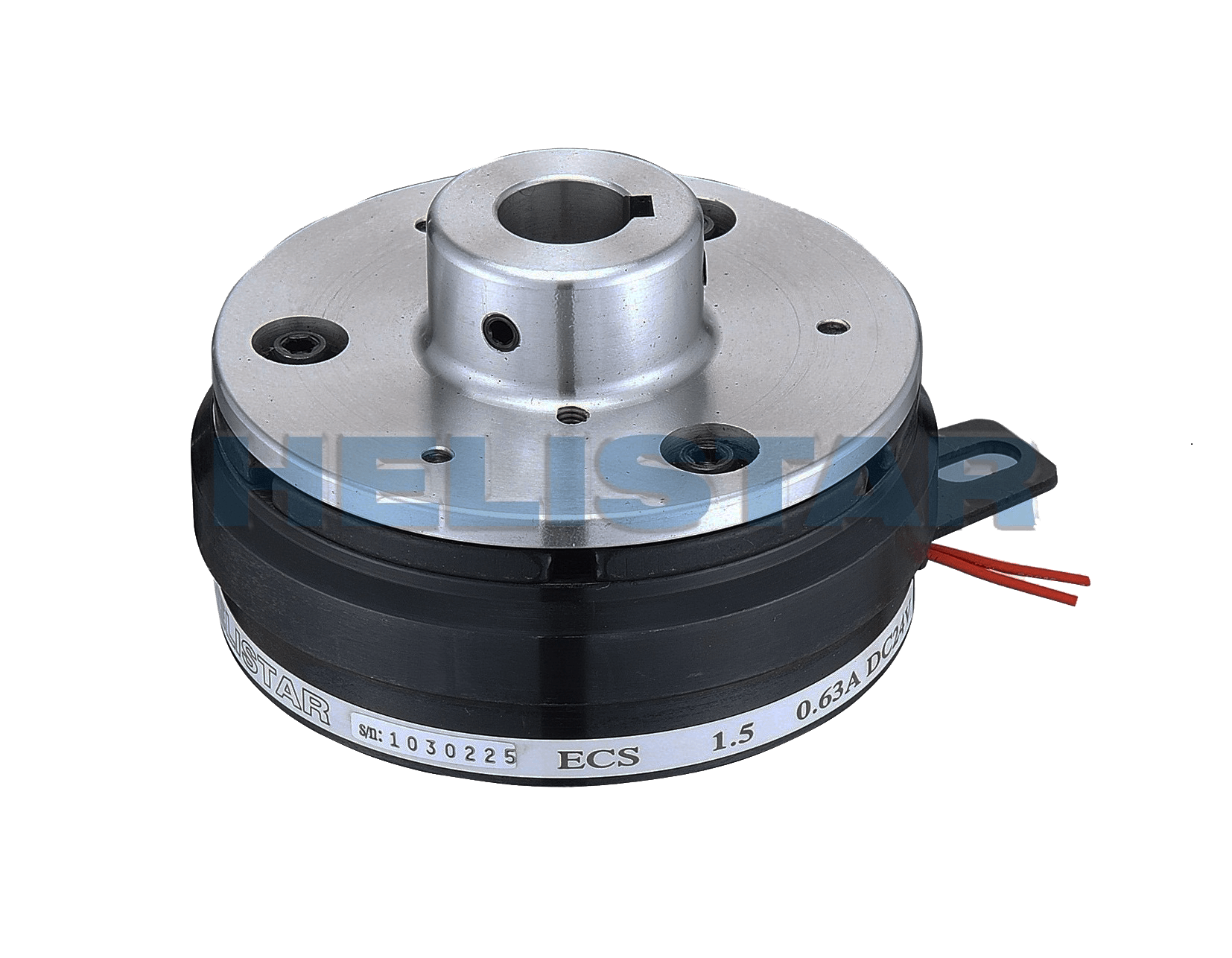

電磁離合器(軸承安裝型0.6~200kgfm)
型 號：ECS-1 (0.6~200kgfm)
用途：連結、切離、變速、正逆轉、寸動超載保護等。
規格表
| 型號 Model | 0.6 | 1.5 | 2.5 | 5 | 10 | 20 | 40 | 60 | 100 | 200 | ||||||||||||
| 摩擦扭矩 Torque |
動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | 動(Td) | 靜(Ts) | ||
| (N·m) | 5 | 5.5 | 10 | 11 | 20 | 22 | 40 | 45 | 80 | 90 | 180 | 200 | 360 | 400 | 550 | 600 | 900 | 1000 | 1800 | 2000 | ||
| (kgf·m) | 0.5 | 0.55 | 1.0 | 1.1 | 2.0 | 2.2 | 4.0 | 4.5 | 8.0 | 9.0 | 18.0 | 20.0 | 36.0 | 40.0 | 55.0 | 60.0 | 90.0 | 100.0 | 180.0 | 200.0 | ||
| 勵磁電壓 Voltage |
(DC-V) | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | |||||||||||
| 線圈 Coil(20°C) |
容量(W) | 11 | 15 | 20 | 25 | 35 | 50 | 60 | 90 | 100 | 200 | |||||||||||
| 電流(A) | 0.46 | 0.63 | 0.83 | 1.09 | 1.46 | 2.1 | 2.50 | 3.75 | 4.2 | 8.3 | ||||||||||||
| 電阻(Ω) | 52 | 38 | 29 | 23 | 16 | 13 | 9.6 | |||||||||||||||
| 最高旋轉數 Maximum speed(r/min) |
3000 | 3000 | 3000 | 2000 | 2000 | 2000 | 2000 | 2000 | 1800 | 1800 | ||||||||||||
| 旋 轉 部 慣 量 Moment of inertia |
轉子 Roter |
J(kg·m²) | 7.35×10-5 | 2.24×10-4 | 6.78×10-4 | 2.14×10-3 | 6.30×10-3 | |||||||||||||||
| GD²(kgf·m²) | 2.94×10-4 | 8.94×10-4 | 2.71×10-3 | 8.25×10-3 | 2.52×10-2 | |||||||||||||||||
| 電樞 Armature plate |
J(kg·m²) | 4.23×10-5 | 1.18×10-4 | 4.78×10-4 | 1.31×10-3 | 4.80×10-3 | ||||||||||||||||
| GD²(kgf·m²) | 1.69×10-4 | 4.72×10-4 | 1.91×10-3 | 5.22×10-3 | 1.92×10-2 | |||||||||||||||||
| 質量 Weight(kg) | 0.50 | 0.87 | 1.57 | 2.89 | 5.30 | 11 | 20.5 | 40 | 60 | 77 | ||||||||||||
ECS-1-0.6~40離合器軸承安裝型
| 型號 | 0.6 | 1.5 | 2.5 | 5 | 10 | 20 | 40 | |
| 徑向尺寸 (Diameter) |
A | 63 | 80 | 100 | 125 | 160 | 210 | 265 |
| B | 67.5 | 85 | 106 | 133 | 169 | 220 | 280 | |
| C | 67.5 | 85 | 106 | 133 | 169 | 210 | 263 | |
| E | 26 | 31 | 41 | 49 | 65 | 83 | 105 | |
| G1 | 42.5 | 57.5 | 62.5 | 77.5 | 100 | 126 | 151 | |
| G2 | 50 | 65 | 70 | 85 | 112 | 136 | 161 | |
| G3 | 9.5 | 11.5 | 11.5 | 11.5 | 18.5 | 18.5 | 13 | |
| Y1 | 4.5 | 6.5 | 6.5 | 6.5 | 8.5 | 8.5 | 13 | |
| Y2 | 14 | 16 | 16 | 16 | 25 | 24 | 30 | |
| 軸向尺寸 (Length) |
H | 26 | 28.5 | 32 | 35.5 | 40.7 | 56 | 66.5 |
| L1 | 46 | 54.5 | 64.5 | 74.5 | 88.5 | 124.4 | 148 | |
| L2 | 34.5 | 38.5 | 44.5 | 50.5 | 57.5 | 88.4 | 105 | |
| M1 | 27 | 30 | 33.5 | 38 | 41.5 | 68 | 81 | |
| M2 | 15 | 20 | 25 | 30 | 38 | 45 | 54 | |
| P | 7.3 | 8.3 | 9 | 9.3 | 11.7 | |||
| R | 2 | 2 | 2 | 2 | 3.2 | 3.2 | 3.2 | |
| T | 6 | 8 | 10 | 12 | 15 | 18 | 22 | |
| a | 0.2 ±0.05 | 0.2 ±0.05 | 0.2 ±0.05 | 0.3 ﹢0.05 ﹣0.1 |
0.3 ﹢0.05 ﹣0.1 |
0.4 ﹢0.1 -0.0 |
0.5 ﹢0.1 -0.0 |
|
| m | M4 | M5 | M5 | M6 | M8 | M8 | M10 | |
| 鍵 (Key) |
D | 12 | 15 | 20 | 25 | 30 | 40 | 50 |
| b | 4 | 5 | 5 | 7 | 7 | 10 | 12 | |
| t | 1.5 | 2 | 2 | 3 | 3 | 3.5 | 3.5 | |
| 質量 Weight(kg) | 0.54 | 0.95 | 1.73 | 3.18 | 5.6 | |||
ECS-1-60~200 離合器軸承安裝型
| 型號 | 60 | 100 | 200 | |
| 徑向尺寸 (Diameter) |
A | 316 | 396 | 440 |
| A2 | 180 | 220 | 220 | |
| B | 330 | 416 | 440 | |
| E | 100 | 120 | 120 | |
| F | 10.5 | 12.5 | 12.5 | |
| G1 | 182 | 228 | 242 | |
| G2 | 195 | 241 | 255 | |
| G3 | 13 | 13 | 13 | |
| Y1 | 13 | 13 | 13 | |
| Y2 | 33 | 33 | 33 | |
| 軸向尺寸 (Length) |
H | 95 | 105 | 163 |
| L1 | 165.6 | 190.8 | 249.3 | |
| L2 | 70 | 85 | 85.5 | |
| M1 | 89 | 99 | 157 | |
| M2 | 60 | 69 | 69 | |
| R | 5 | 5 | 5 | |
| m | 12 | 12 | 12 | |
| a | 0.6+0.2 -0.0 | 0.8+0.2 -0.0 | 0.8+0.2 -0.0 | |
| 鍵 (Key) |
D | 60 | 70 | 70 |
| b | 15/18 | 18 | 18 | |
| t | 65/65.5 | 76 | 76 | |
| 質量 Weight | * | * | * | |
